Deep Soil Mixing Design in Brandon Manitoba

Rigorous testing. Clear reporting.

LEARN MORE

Brandon grew fast after the railway arrived in 1881, spreading over the Assiniboine River floodplain. That flat terrain hides a complicated subsurface: thick lacustrine clays, organic silts, and discontinuous peat pockets. Early builders discovered it the hard way when grain elevators settled unevenly. Today, for any structure on soft ground, Deep Soil Mixing design in Brandon Manitoba offers a controlled way to improve bearing capacity without excavating the weak layers. We combine this with cimentaciones superficiales when shallow competent strata are present, but in Brandon the variable organic zones often push us toward DSM columns to reach a uniform load-bearing horizon.

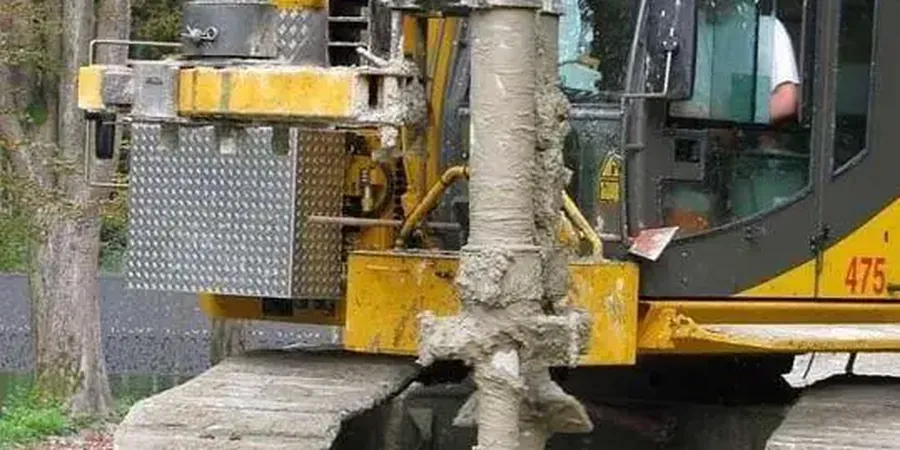

Illustrative image of Deep soil mixing in Brandon Manitoba
In Brandon's lacustrine clays, DSM columns achieve unconfined compressive strengths of 1.0 to 3.5 MPa after 28 days, transforming soft ground into a reliable foundation medium.

Our service areas

Methodology and scope

The DSM rig we deploy in Brandon carries a set of hollow-stem augers with injection ports at the tip. It rotates into the clay while pumping a cement-bentonite slurry at controlled pressure. The mixing head breaks the soil structure and blends it with the binder in a single pass. We typically work with 0.6 to 1.2 m diameter columns, reaching depths of 8 to 18 m depending on the organic layer thickness. The equipment includes an automated flowmeter and data logger to record binder dosage per meter. Before starting production columns, we always run a field trial with ensayo SPT to verify strength gain and set the final mix parameters for the site.
Technical reference — Brandon Manitoba

Local considerations

The National Building Code of Canada (NBCC 2020) classifies Brandon as seismic zone with moderate hazard, but the real risk here is liquefaction of saturated loose sands and cyclic softening of sensitive clays. Organic layers also create long-term settlement if not fully treated. Deep Soil Mixing design in Brandon Manitoba must account for these two failure modes. We follow the recommendations in CSA A23.3 for structural design of the treated ground and use the FHWA manual for DSM quality control. A poorly designed DSM grid can leave untreated pockets that amplify differential movement under seismic loading.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.xyz

Applicable standards

NBCC 2020 – seismic and foundation design, CSA A23.3 – structural concrete provisions, FHWA-HRT-13-046 – deep mixing design manual

Technical parameters

ParameterTypical value
Column diameter0.6 – 1.2 m
Typical depth range8 – 18 m
Binder content200 – 400 kg/m³
28-day UCS (clay)1.0 – 3.5 MPa
Area replacement ratio15 – 40 %
Permeability after treatment< 1×10⁻⁶ cm/s

Frequently asked questions

How does Deep Soil Mixing perform in Brandon's organic peat layers?

Peat layers reduce the final strength of DSM columns because organic matter retards cement hydration. In Brandon, we compensate by increasing binder content to 350-400 kg/m³ and using blast furnace slag to improve long-term strength gain. Pre-treatment sampling of the organic horizon is mandatory.

What is the typical cost range for Deep Soil Mixing design in Brandon Manitoba?

The cost for DSM design and execution in Brandon typically ranges between CA$2,540 and CA$8,340 per column depending on diameter, depth, and binder type. This includes the field trial, quality control testing, and final design report. Larger volumes reduce the unit cost.

Can DSM columns reduce liquefaction risk in Brandon's sandy layers?

Yes. DSM columns densify the surrounding soil and provide shear reinforcement against cyclic loading. For Brandon's interbedded sands and silts, we design the grid to achieve a post-treatment relative density above 70%. The treated ground then meets NBCC 2020 liquefaction triggering criteria.

Location and service area

We serve projects across Brandon Manitoba.
