GPR (Ground Penetrating Radar) Survey in Brandon Manitoba

Brandon Manitoba sits at an elevation of 409 meters along the Assiniboine River, underlain by glacio-lacustrine clays and glacial tills that can mask buried hazards. A GPR (Ground Penetrating Radar) survey in Brandon Manitoba provides non-invasive imaging of subsurface conditions, detecting everything from abandoned utility lines to soil anomalies. With the city's clay-rich soils, signal attenuation is a real concern, which is why our team adjusts antenna frequencies between 200 and 900 MHz to optimize penetration depth. Before any excavation or foundation work, combining GPR with a permeability test helps assess drainage and void potential in the silty clays common across the region. This integrated approach reduces risk during retrofits and new construction alike.

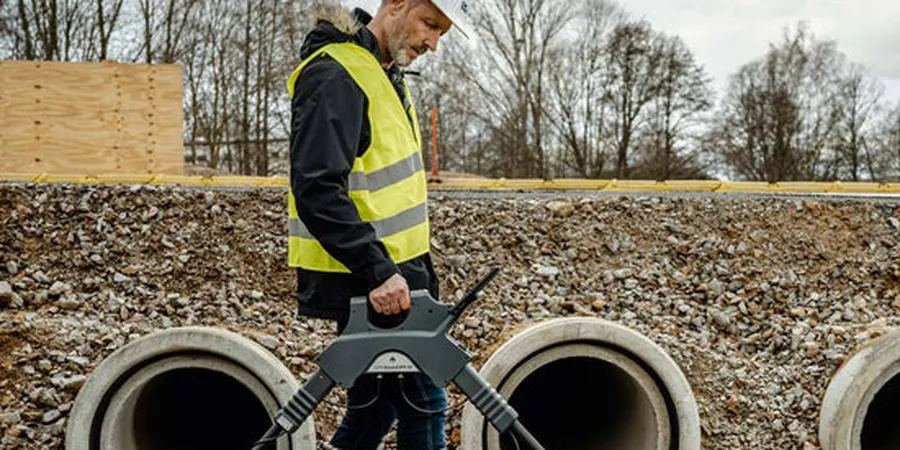

Illustrative image of Georradar gpr in Brandon Manitoba

In clay-rich Brandon Manitoba soils, GPR signal penetration typically reaches 2 to 4 meters with 400 MHz antennas, but voids can be missed without proper ground coupling.

Our service areas

Ground improvement

Unsaturated soil analysis ›Stone column design ›Dynamic compaction design ›Deep Soil Mixing (DSM) design ›Geotechnical drainage design ›

VIEW ALL GROUND IMPROVEMENT ›

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Slope failure analysis ›Debris flow analysis ›Factor of safety (FS) calculation ›

VIEW ALL SLOPES & WALLS ›

Foundations

Differential settlement analysis ›Settlement analysis ›Bearing capacity analysis ›Foundations on fill (analysis) ›Shallow foundation design ›

VIEW ALL FOUNDATIONS ›

Methodology and scope

In Brandon Manitoba, the contrast between older downtown districts and newer subdivisions on the city's east side is dramatic in terms of soil compaction and buried infrastructure density. Downtown Brandon Manitoba has a tangle of century-old water mains, gas lines, and unknown fill materials, while newer areas like the Richmond neighbourhood have more predictable stratigraphy. A GPR survey in Brandon Manitoba maps these differences through real-time radar profiles, and when combined with test pits for ground truthing, the accuracy improves significantly. Key parameters we evaluate include:

Depth to bedrock or dense till layers
Location of metallic and PVC utilities
Voids or subsidence zones under pavements
Rebar spacing and cover in concrete slabs

The method also pairs well with MASW surveys to correlate shear wave velocities with radar facies, giving a fuller picture of the subsurface for engineering design.

Technical reference — Brandon Manitoba

Local considerations

Under the National Building Code of Canada (NBCC 2020), unknown subsurface obstructions can lead to structural damage or safety hazards if not identified before construction. In Brandon Manitoba, where frost penetrates up to 2.4 meters, a missed utility or void can cause differential heave or sudden collapse during excavation. A GPR survey in Brandon Manitoba directly addresses this by mapping anomalies before the first shovel hits the ground. The risk of striking a buried gas line or encountering undocumented fill is real, especially in older industrial zones near the CP Rail yards. Our surveys follow ASTM D6432-19 guidelines for standard GPR testing, ensuring repeatable and defensible results.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.xyz

Applicable standards

ASTM D6432-19 (Standard Guide for Using GPR for Subsurface Investigation), NBCC 2020 Division B Part 4 (Structural Design), CSA A23.3-19 (Design of Concrete Structures - rebar location)

Technical parameters

Parameter	Typical value
Antenna frequency range	200 - 900 MHz
Typical penetration depth (clay/till)	2 - 4 m
Horizontal resolution	10 - 30 cm
Vertical resolution	5 - 15 cm
Data acquisition mode	Time-slice and CMP
Post-processing software	Radan 7.0 / GPR-SLICE

Frequently asked questions

How deep can GPR penetrate in Brandon Manitoba clay soils?

In the clay-rich tills and lacustrine deposits typical of Brandon Manitoba, a 400 MHz antenna typically reaches 2 to 4 meters. Using a 200 MHz antenna can extend penetration to 5–6 meters in dry conditions, but resolution decreases. Saturated clays or high conductivity layers may reduce depth to under 2 meters.

What is the cost range for a GPR survey in Brandon Manitoba?

The cost for a GPR survey in Brandon Manitoba typically ranges between CA$12.580 and CA$1.950 depending on site area, antenna configuration, and reporting requirements. A small utility locate on a 500 m² lot may be on the lower end, while a full stratigraphy scan across several hectares falls at the higher end. Exact pricing depends on access and data density.

Can GPR detect plastic pipes and non-metallic utilities?

Yes, GPR can detect plastic pipes, PVC conduits, and even some fiber optic cables, provided there is a dielectric contrast with the surrounding soil. In Brandon Manitoba's clay soils, the contrast is often sufficient for PVC water mains and gas lines. However, detection is less reliable than for metallic pipes, and we recommend ground truthing with test pits in critical zones.

Do I need a permit to run a GPR survey on public property in Brandon Manitoba?

Yes, for surveys on city streets, sidewalks, or boulevards, you need a right-of-way permit from the City of Brandon. Private property surveys do not require a permit, but we always coordinate with utility locates (Call Before You Dig) to avoid conflicts with existing services. Our team handles the permit process as part of the service.
